Power Central lifepo4 Lithium li ion Smart BMS 12v 24v 36v 48v 60v 72v 100a 4s 8s 12s 16s by Daly

Variation

Lifepo4 BMS

4S 12V Discharge 100A Charge 50A lifepo4 smart bms, same port

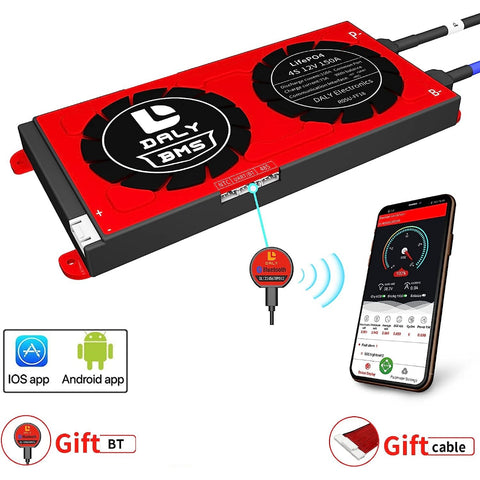

4S 12V Discharge 150A Charge 75A lifepo4 smart bms, same port

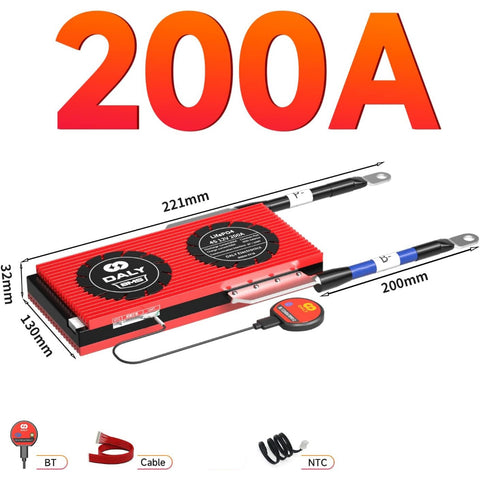

4S 12V Discharge 200A Charge 100A lifepo4 smart bms, same port

8S 24V Discharge 100A Charge 50A lifepo4 smart bms, same port

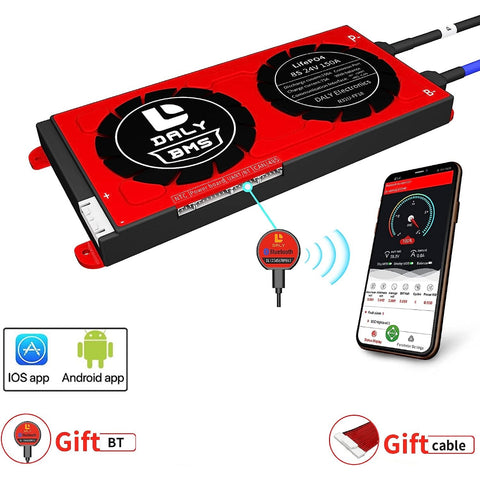

8S 24V Discharge 150A Charge 75A lifepo4 smart bms, same port

8S 24V Discharge 200A Charge 100A lifepo4 smart bms, same port

12S 36V Discharge 100A Charge 50A lifepo4 smart bms, same port

16S 48V Discharge 100A Charge 50A lifepo4 smart bms, same port

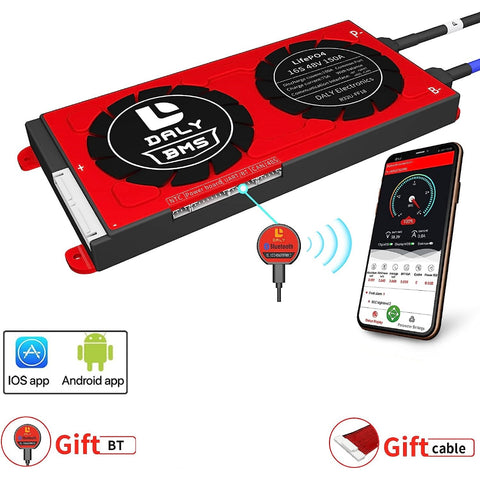

16S 48V Discharge 150A Charge 75A lifepo4 smart bms, same port

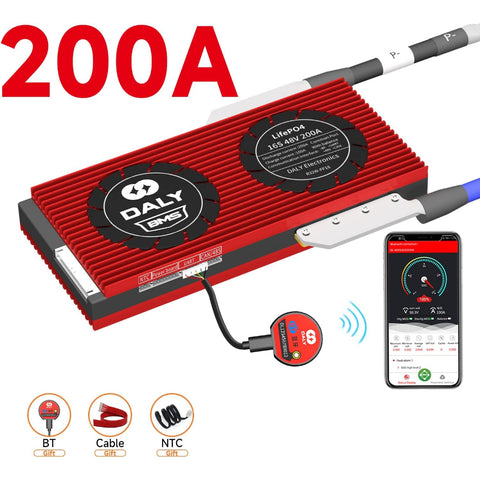

16S 48V Discharge 200A Charge 100A lifepo4 smart bms, same port

Lithium ION BMS

13S 48V Discharge 100A Charge 50A Lithium Ion smart bms, same port

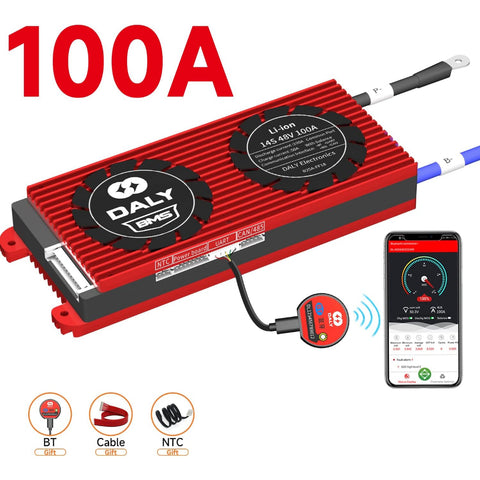

14S 52V Discharge 100A Charge 50A Lithium Ion smart bms, same port

16S 60V Discharge 100A Charge 50A Lithium Ion smart bms, same port

20S 72V Discharge 100A Charge 50A Lithium Ion smart bms, same port

included in the box

BMS x 1

balance wire x 1

Bluetooth module x 1

temp sensor x 1

Description

- Using top quality (A-level) protective integrated circuit IC, from Seiko of Japan. The IC itself has power a balancing function. The circuit is simple and reliable

- Strong load ability, high constant discharge current, using high voltage tolerant and ultra low resistance power MOSFETs. Daly's extra large heat sinks and sealed thermal coating greatly assist cooling

- Voltage detection for each cell so each cell will be protected from over charge or over discharge. The over current and short circuit protection function is a built-in feature to preserve the life of both the BMS and cells.

- Temperature protection during charging and discharging

- Look up SMART BMS by DalyBMS on the Android Play Store or iOS App Store

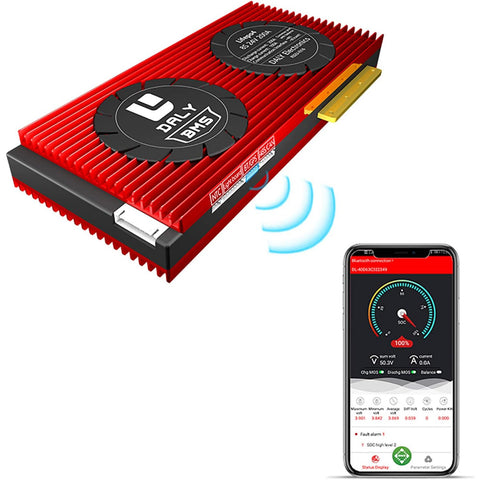

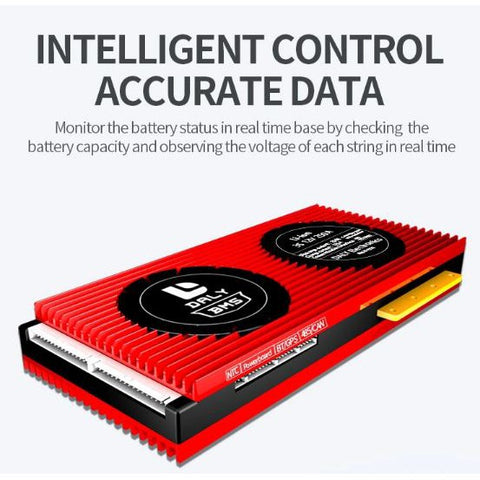

Smart function

- Monitor state of charge

- Current in/out

- Power in/out

- Temperature

- Charge/discharge MOSFETs open/closed

- If balancing

- Individual cell voltages, overall voltage, maximum cell voltage, minimum cell voltage, differential voltage

specification Lifepo4

Over Charge Detection Voltage: 3.75±0.05V

Over Charge Detection Delay Time: 1s

Over Charge Release Voltage: 3.55±0.05V

Cell balancing Detection Voltage: 3.5V

Cell balancing Release Voltage: 3.5V

Cell balancing Current: 30±5mA

Over Discharge Detection Voltage: 2.2±0.05V

Over Discharge Detection Delay Time: 1s

Over Discharge Release Voltage: 2.7±0.05V

Over Current Protection Condition: Disconnect the load

Detection Condition: Exterior Short Circuit

Working Temp Range: -20 to 70

Lithium ION Specification

Overcharge detection voltage 4.25 ± 0.025V

Overcharge protection delay 1S

Overcharge release voltage 4.15 ± 0.05V

Power balance detection voltage 4.18V

Power balance release voltage 4.18V

Power Balance Current 30 ± 5mA

Over discharge detection voltage 2.7 ± 0.1V

Overdischarge detection delay 1S

Over discharge release voltage 3.0 ± 0.1V

discharge over current protection delay 1S

discharge over current protection condition :disconnects the load
