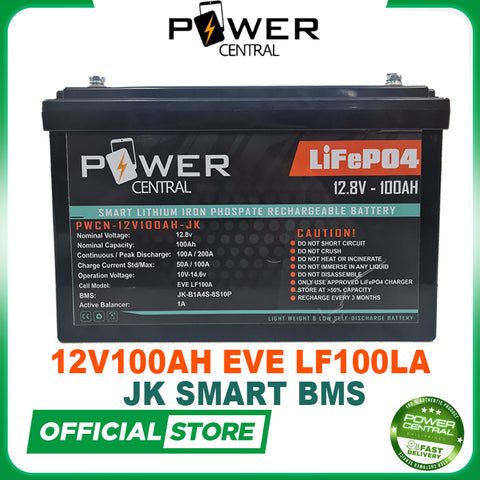

Power Central 12V 100ah Lifepo4 Battery EVE LF100LA JK Smart BMS JBD Grade A 5000 Cycle life

- Grade A 2024 EVE LF100LA are used for the build

- Reliable and long lasting battery as

Description

- Grade A 2024 EVE LF100LA LiFePO4 Battery: LiFePO4 battery 12 V 100 Ah lithium battery can run 5000+ cycles

- Higher Energy: 12 Volt 100 Ah lithium battery system Up to 1200 Wh energy. Perfect for which requires higher power or longer battery runtime Applications.

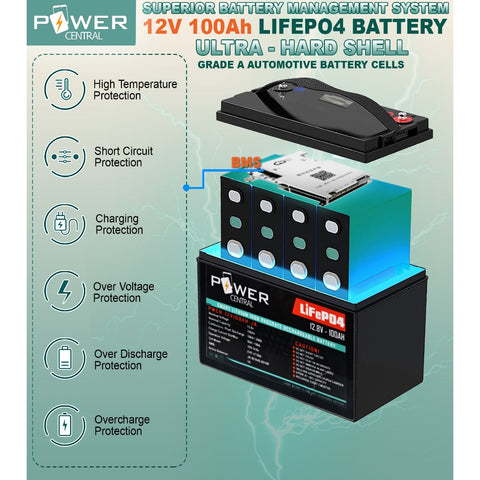

- BMS Protection Board: JK Smart BMS and JBD BMS are used to ensure long lasting and reliable 12v 100ah battery to protect it from overcharge, over-discharge, over-current, and short circuit with excellent self-discharge rate.

- Safe and Useful: Li-Ion batteries can be safer than Lead Acid batteries, which have no protection against ground faults. This product fits for outdoor camping power and indoor easy installation.

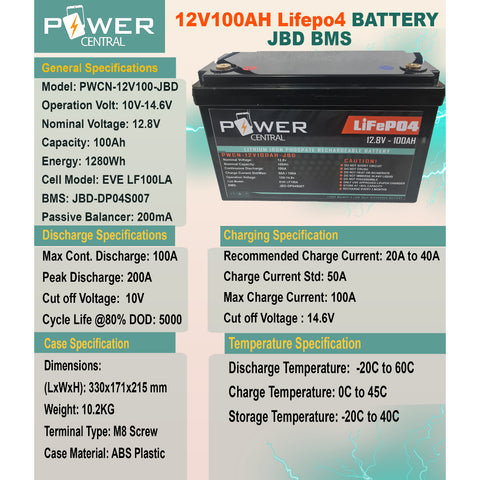

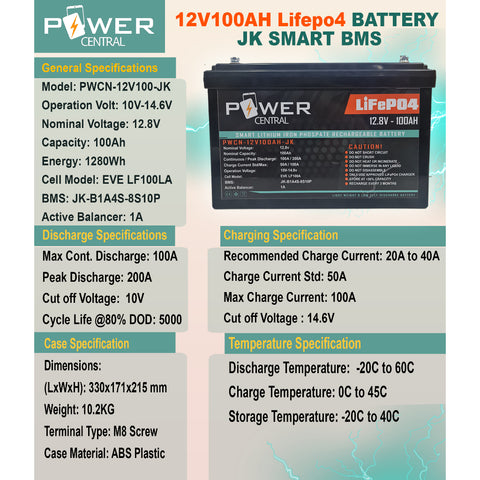

Specification

General Specifications

Model: PWCN-12V100-JK/ PWCN-12V100-JBD

Operation Volt: 10V-14.6V

Nominal Voltage: 12.8V

Capacity: 100Ah

Energy: 1280Wh

Cell Model: EVE LF100LA

BMS: JK-B1A4S-8S10P/ JBD-DP04S007

Active Balancer: 1A / Passive balance: 200mA

Discharge Specifications

Max Cont. Discharge: 100A

Peak Discharge: 200A

Cut off Voltage: 10V

Cycle Life @80% DOD: 5000

Charging Specification

Recommended Charge Current: 20A to 40A

Charge Current Std: 50A

Max Charge Current: 100A

Cut off Voltage : 14.6V

Case Specification

Dimensions (LxWxH): 330x171x215 mm

Weight: 10.2KG

Terminal Type: M8 Screw

Case Material: ABS Plastic

Temperature Specification

Discharge Temperature: -20C to 60C

Charge Temperature: 0C to 45C

Storage Temperature: -20C to 40C
